How Do Full Spectrum 1000 Watt LED Grow Lights Improve Plant Growth?

The Short Answer: What a 1000W Full Spectrum LED Actually Changes

The question is usually asked by someone standing between two quotes: a 1000W HPS replacement and a 1000W LED panel, with a spectrum chart attached to one and a wattage badge to the other. The honest answer is that the wattage badge tells you almost nothing, the spectrum chart tells you less than you think, and the numbers that actually predict growth are printed in small type on the spec sheet: PPF in µmol/s, efficacy in µmol/J, and the footprint over which the manufacturer will stand behind a PPFD figure.

Once those three numbers are on the table, the mechanisms become concrete. A 1000W LED running at 2.8 µmol/J emits about 2,800 µmol/s. A 1000W double-ended HPS draws about 1,050W at the wall and emits 1,800 to 2,100 µmol/s, which is 1.7 to 2.0 µmol/J. The LED is not a one-to-one replacement for the HPS. It is roughly 1.4 times the photon output at the same nominal wattage, which is why a 700W LED can stand in for a 1000W HPS on a photon basis, and why a 1000W LED is a step up rather than a swap.

That extra photon flux is the first mechanism. The other four are geometry, waveband, heat distribution and control. They interact, and each one has a way to be checked before you spend money. The table below is the short version, and the rest of this guide takes each row apart.

Two of those rows are routinely oversold. Spectrum is the one growers ask about and the one with the weakest direct yield evidence. Heat is the one growers assume they understand and the one that most often changes a room's VPD setpoint after a retrofit. Both deserve their own sections, and both are settled by measurement rather than by a graph on a product page.

What 1000 Watts Buys You, and What It Does Not

A watt is a unit of electrical power, not a unit of light. The conversion from watts to plant-usable photons runs through the fixture's efficacy, and efficacy varies by a factor of two across the products that all call themselves 1000W grow lights. That is the entire reason two fixtures with the same badge can behave like different classes of equipment.

Consider three fixtures that a buyer might compare in the same week. A 1000W double-ended HPS with an electronic ballast draws about 1,050W and produces 1,800 to 2,100 µmol/s. A 1000W LED built from mid-bin white and red diodes at 2.5 µmol/J produces 2,500 µmol/s. A 1000W LED built from top-bin diodes and a well-matched driver at 3.2 µmol/J produces 3,200 µmol/s. The first and the third differ by 60 percent in delivered photons while sharing the same wattage label, and the difference compounds every hour the room runs.

The practical consequence is that a 1000W LED is not the correct replacement for a 1000W HPS. It is the correct replacement for about 1.4 HPS fixtures, or it is a deliberate upgrade in intensity for a room that was already at the top of its DLI range. If the goal is to match the old photon output and cut the bill, a 600 to 750W LED is the honest comparison, and the savings show up as watts rather than as a higher PPFD reading. If the goal is to push a CO₂-enriched flower room past 1,000 µmol/m²/s, the 1000W LED is the fixture that gets there without doubling the fixture count.

This is also where the "equivalent to 1000W HPS" phrase on a product page should be read carefully. It can mean equal photons, equal canopy coverage, or equal marketing tier. Only the first two are measurable. Ask for PPF and the footprint at which the PPFD claim is made, and the ambiguity disappears.

What "Full Spectrum" Means on a Real Spec Sheet

Full spectrum is not a regulated term. In practice it means the fixture emits across most of the 400 to 700 nm photosynthetic range rather than concentrating almost everything in a narrow red peak with a token blue channel. A white-phosphor LED base plus discrete red, far-red and sometimes UV channels is the common architecture. A blurple panel with two peaks is the older architecture. Both can grow plants. They are not interchangeable in a room that also has to be inspected, photographed or worked in.

The reason breadth matters is partly physiological and partly practical. Green photons are weakly absorbed by chlorophyll, which sounds like a disadvantage until you follow them into the leaf: they travel further through palisade and spongy mesophyll, so at high background light they drive photosynthesis in chloroplasts that red and blue never reach (Terashima et al., 2009). Far-red sets phytochrome balance and therefore stem extension and leaf angle. Blue keeps internodes short and leaves thick. A spectrum that contains all of them gives the plant a normal signal environment instead of forcing it to respond to an artificial one.

The mistake is to read that table as a checklist of benefits and conclude that more bands equal more growth. A spectrum is a set of ratios, not a collection of ingredients. A white LED with a 1:1 blue-to-red ratio produced less inflorescence than a narrow red-and-blue mix at the same ratio in the trial cited above, which is the clearest available evidence that "full" is not a synonym for "better" (Danziger and Bernstein, 2021). The band-by-band decisions, including where UV helps and where it does not, are covered in our guide to choosing a spectrum for cannabis flower.

Mechanism One: More Photons per Joule

Efficacy is the first number to check because it multiplies everything else. A fixture at 3.0 µmol/J turns 1,000W into 3,000 µmol/s. A fixture at 2.4 µmol/J turns the same 1,000W into 2,400 µmol/s. Put either over the same 4×6 ft footprint and the first delivers 25 percent more PPFD at the canopy for the same electricity bill. Nothing in the spectrum changed. The difference is how efficiently the diodes and driver convert electrons into photons in the 400 to 700 nm range.

The published range for commercial fixtures is narrower than marketing suggests. A review of horticultural LED performance reported 2.5 to 2.8 µmol/J for white-plus-red fixtures and about 3.0 µmol/J for blue-plus-red fixtures, against roughly 1.7 µmol/J for the best double-ended HPS (Kusuma, Pattison and Bugbee, 2020). The same review put the theoretical fixture ceiling at about 3.4 µmol/J for a white-plus-red build and 4.1 µmol/J for blue-plus-red, which is a useful sanity check: a spec sheet claiming 4.5 µmol/J at the fixture is quoting a diode measurement, a favorable junction temperature, or a number that will not survive an independent test.

For a buyer, the arithmetic is simple enough to do in the quotation meeting. Multiply the fixture's PPF by the number of fixtures to get the room's photon budget. Divide by the canopy area to get the average PPFD at full output. Multiply by the photoperiod in seconds and divide by one million to get the daily light integral. If two quotes land at the same DLI with different wattage, the lower wattage is the more efficient fixture, and the difference is what you will pay for every month for the next five years. Our guide to what µmol/J really tells you goes deeper into the measurement caveats.

One caveat belongs here rather than in a footnote. Fixture efficacy is measured at a specific drive current and junction temperature, and it falls when the diodes run hot. A fixture with a large heatsink and a driver that is not pushed to its limit will hold its number longer than a smaller fixture with the same lab rating. That is one reason two 3.0 µmol/J fixtures can diverge after a year of 12-hour days.

Mechanism Two: A Wider Waveband Reaches Tissue a Narrow Spectrum Misses

The leaf is not a flat absorber. Chlorophyll in the upper palisade cells captures red and blue photons within the first few cell layers, which is efficient at low light and self-limiting at high light. Once those upper chloroplasts are saturated, additional red photons are dissipated as heat rather than used for carbon fixation. Green photons, weakly absorbed per unit path length, keep travelling through the spongy mesophyll and reach chloroplasts that are still below saturation. At the light levels commercial flower rooms run, that difference is measurable: in strong white background light, added green drove leaf photosynthesis more efficiently than added red (Terashima et al., 2009).

This is the strongest physiological argument for a white base rather than a narrow red-blue panel, and it is a leaf-level argument, not a yield promise. A dense canopy also filters light as it descends: the upper leaves remove most of the red and blue, so the light that reaches the middle of the crop is already enriched in green and far-red. A fixture that emits those bands from the start sends a more natural signal downward. Whether that turns into grams depends on canopy density, defoliation and the intensity you run, which is why the claim should be tested with a lower-canopy PPFD map rather than accepted from a spectrum chart.

Blue does a different job. It keeps plants compact through cryptochrome and the shade-avoidance pathway, which is why a blue-rich LED produced shorter plants than HPS in a commercial comparison, while HPS plants grew about 11 percent taller with only 4 percent blue and 7 percent far-red against 13 percent blue and 1 percent far-red under LED (2025 interlighting trial). For a room with fixed trellis height, that difference decides whether the canopy fits the infrastructure. For a room with unlimited headroom, it matters less.

Far-red is the band most often added without a plan. It increases leaf area and stem extension through phytochrome, and it can improve canopy light capture when it is used to open the crop. It can also stretch a plant past the trellis and, at high dose, reduce yield. The right question is not "does the fixture have far-red" but "how much, and can I switch it". A separate channel is worth more than a fixed percentage, because the answer changes between vegetative and flowering stages.

Mechanism Three: Bar Geometry Turns Watts into an Even Canopy

Two fixtures can emit the same PPF and produce different crops, because photons have to land evenly to be useful. A single high-power point source with a reflector creates a bright centre and a falloff toward the edges. A multi-bar fixture distributes the same diodes across the footprint, so the distance from glass to canopy varies less and the light arrives from more angles. The result is a flatter PPFD map, fewer shaded bud sites at the edges, and a more uniform flowering response across the bed.

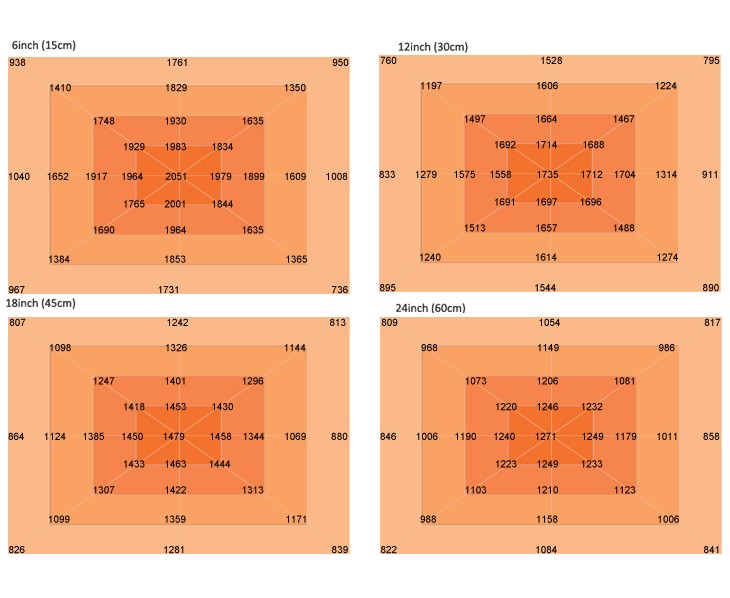

Uniformity is usually expressed as the ratio of the lowest reading to the highest across the canopy, or as a plus-or-minus percentage around the average. A well-designed multi-bar fixture is typically specified within about ±10 to 15 percent across its rated footprint. A single-point reflector design often varies by 25 to 35 percent. Those are manufacturer design targets rather than peer-reviewed constants, so the only trustworthy number is the one you measure in your own room with your own meter.

Geometry also decides how close the fixture can run. Bars spread heat and emit less concentrated radiant energy downward, so the canopy can sit closer without a hot spot on the top leaves. Closer mounting reduces the inverse-square loss between fixture and canopy, which is another way of saying that a well-spread fixture delivers more of its photons to the plant and fewer to the walls. The trade-off is that closer mounting reduces the area covered, so the fixture count has to be right before the height is optimized.

Mechanism Four: Less Heat per Photon, and Heat You Can Aim

Every watt that enters a sealed room eventually leaves as heat, so the useful question is not whether a fixture produces heat but how much electricity it needs to deliver a given PPFD, and where the heat lands. At equal PPFD, a 3.0 µmol/J LED needs about 60 percent of the wattage of a 1.7 µmol/J HPS. The other 40 percent is heat the room does not have to remove, which reduces HVAC load in proportion to the wattage saved rather than to a marketing claim about "cool" operation.

Where the heat lands also matters. HPS throws a large share of its output as radiant energy in the near-infrared, which is absorbed by the canopy and raises leaf temperature above air temperature. LED delivers less near-infrared, so leaf temperature sits closer to air temperature at the same PPFD. That sounds like an unconditional benefit, and in a warm room it usually is. In a cool room it can push the crop below its preferred leaf temperature unless the air setpoint is raised, which is why a lighting retrofit is also an environment change. Our guide to ideal temperature for growing weed covers the leaf-to-air relationship and the setpoint shift that follows a switch to LED.

The practical check is a leaf-temperature reading with an infrared thermometer at canopy height, taken at the same time of day under the old and new fixture. If the leaf runs cooler under LED at the same PPFD, the room can usually be run a degree or two warmer without stressing the crop, and that change shows up in the VPD calculation as well. If the room was already cool, the same reading tells you to raise the air setpoint rather than to add heat at the root zone.

Mechanism Five: Dimming and Channels Across a Whole Cycle

A 1000W fixture that only runs at 100 percent is a single-stage tool. A 1000W fixture with 0 to 10V dimming and independent UV or IR channels is a platform. Vegetative rooms need lower PPFD over longer photoperiods; flowering rooms need higher PPFD over 12 hours; propagation needs a fraction of both. Dimming lets one fixture cover those stages without buying a second product line or swapping lamps, and it lets a room respond to weather, CO₂ and crop age without changing the fixture count.

The arithmetic is worth doing once per stage. PPFD multiplied by photoperiod in seconds, divided by one million, gives DLI in mol/m²/day. A room at 600 µmol/m²/s over 18 hours receives 38.9 mol/m²/day. The same room at 1,000 µmol/m²/s over 12 hours receives 43.2 mol/m²/day. A 1000W fixture at full output over 4×6 ft delivers about 1,256 µmol/m²/s before losses, which is more than most flowering rooms need at the canopy and well above what a vegetative room needs. Dimming is not a compromise in that situation. It is the correct operating point, and it is why the fixture's efficacy at partial load matters as much as its headline number.

Those figures assume the full 2,800 µmol/s lands on the stated area with no wall loss, which no room achieves. A working design target is 10 to 15 percent lower after reflection, distance and edge losses. The point of the table is not to pick a footprint from it. It is to show that a 1000W fixture is a high-intensity tool at 4×4 ft, a sensible flowering tool at 4×6 ft, and a low-intensity tool at 5×10 ft, and that the same fixture covers all three roles at different dimmer settings. Stage targets and the DLI arithmetic in more detail are in our PPFD and DLI guide.

What the Trials Show, and What They Refuse to Show

The lighting industry has a habit of citing one spectrum study as if it settled the question. It has not. The cannabis literature is small, the cultivars differ, and the studies that compare spectra often change PPFD at the same time, which confounds the result. Reading the trials honestly is the only way to avoid buying a fixture for a benefit it does not deliver.

The pattern across those rows is consistent: intensity and uniformity decide how much flower you get, genetics and environment decide what is in it, and spectrum decides shape and profile at the margin. A 1000W full spectrum fixture is a good default because it delivers intensity efficiently and gives the plant a normal signal environment. It is not a shortcut past the rest of the room.

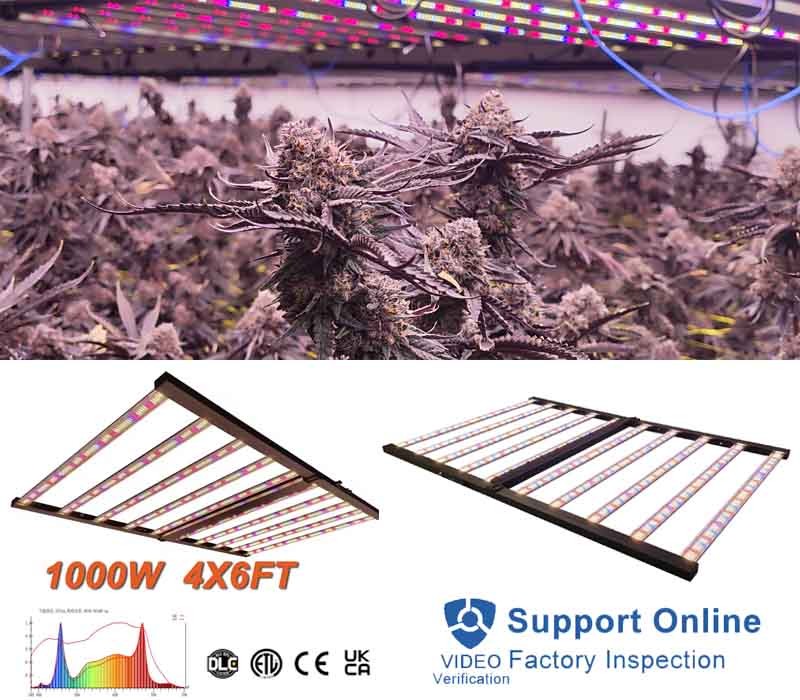

Sizing a 1000W Class Fixture to a Room

The first decision is not the fixture. It is the target PPFD for the stage, because that number sets the photon budget the room has to buy. A flowering room at 900 to 1,000 µmol/m²/s over 12 hours is running 39 to 43 mol/m²/day, which is a reasonable target for a CO₂-enriched room and a high target for an ambient room. A vegetative room at 400 to 600 µmol/m²/s over 18 hours is running 26 to 39 mol/m²/day, which is a different fixture count at the same wattage.

Once the target is set, multiply it by the canopy area to get the required PPF, then divide by the fixture's PPF. A 4×6 ft bed at 1,000 µmol/m²/s needs about 2,230 µmol/s at the canopy. With 10 percent loss, that becomes about 2,480 µmol/s at the fixture, which is one 1000W fixture at 2.5 µmol/J or one 1300W fixture dimmed to about 70 percent. The same bed at 600 µmol/m²/s needs about 1,340 µmol/s at the canopy, which one 1000W fixture covers with headroom through the whole cycle.

Fixture count follows from that arithmetic, and so does the layout. A single 4×6 fixture over a 4×6 bed leaves no overlap, which is efficient but unforgiving of a misaligned hanger. Two smaller fixtures over the same bed give redundancy and a flatter map, at the cost of more hardware and more points of failure. Our guide to how many fixtures a room needs walks through the layout cases, including rows, aisles and multi-tier racks.

Three situations argue against a 1000W fixture. A low ceiling with a short canopy distance turns the extra output into a hot spot rather than a yield gain. A small room with a single fixture has no redundancy and no ability to dim below the driver's stable range. A room that only runs vegetative cycles rarely needs the intensity, and a 600W fixture at full output is often the better match. Buying a 1000W fixture for a 4×4 veg room is a way to pay for photons you will dim away.

The Half of the Canopy a Top Light Cannot Reach

Every top light, however efficient, sends photons downward. In a dense flower canopy, the upper leaves intercept most of them, and the lower third can sit at 20 percent of the top reading or less. That is not a fixture defect. It is canopy physics, and it is why a 1000W upgrade can raise the top grade while leaving the popcorn fraction unchanged. The lower sites are limited by a different supply line.

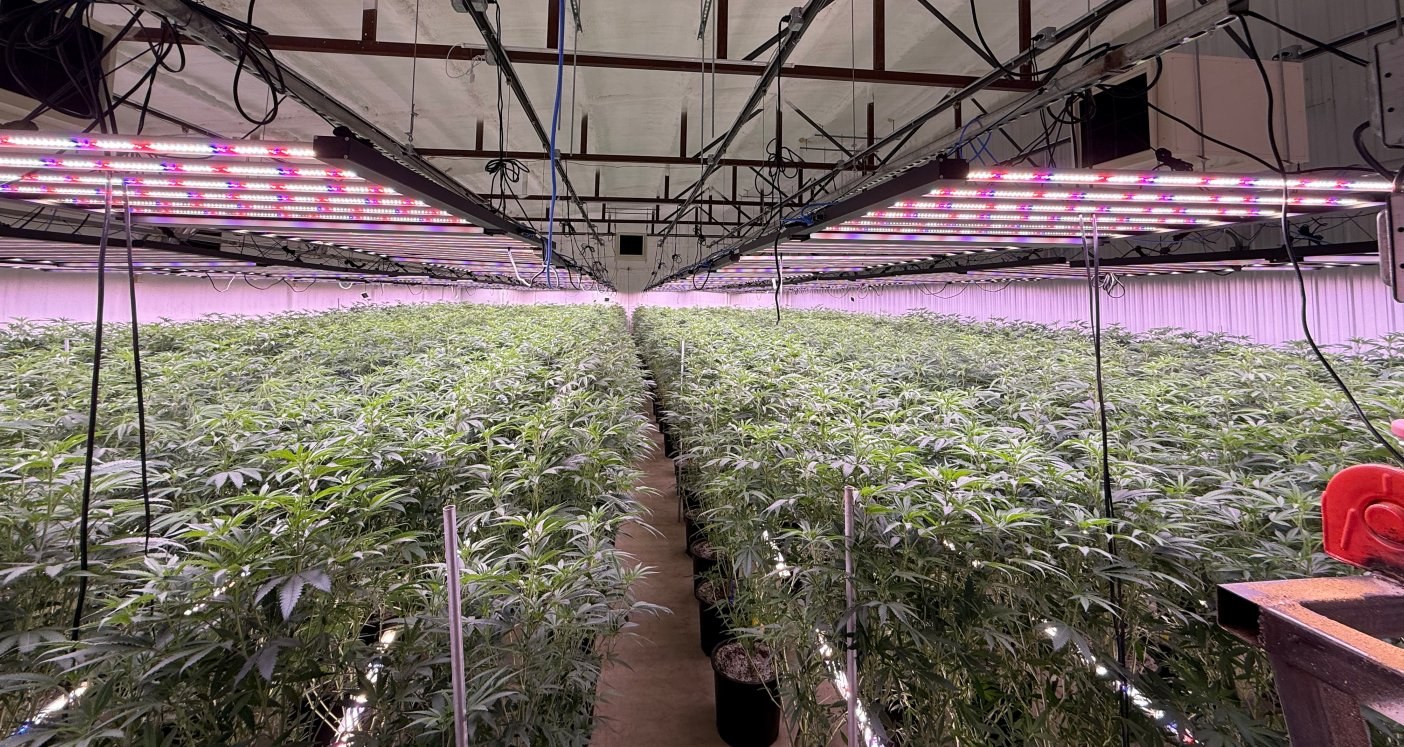

Inter-canopy lighting addresses that supply line directly. Slim bars mounted below the canopy, at the height of the lower flower sites, add photons where the top fixture cannot reach and lift the lower third back into a productive range. In the 2025 commercial trial cited above, adding interlighting increased lower-canopy inflorescence and improved chemical uniformity, and the authors argued it was cost-effective at commercial scale. The mechanism is straightforward: more light at the lower sites means more photosynthesis there, which means denser lower flower rather than larf.

The fixtures we build for that job run 120W to 300W per bar set, in four variants for different rooms. The Basic PC Cover line at 120W to 240W is the entry point for a first trial. The Advanced 270° line at 150W to 300W throws light sideways as well as upward, for wide pots and lower branches near walls. The Pro Glass Cover 120W is built for high-humidity or corrosive rooms. The 3-Sided Illumination line at 120W to 300W covers row sides as well as the space below the canopy. All four run on the same 0 to 10V and RJ12 control platform, so a room can mix variants without mixing control systems, and the Grow Light Set 1240W packages a top light and under-canopy bars as one SKU for a room that wants a single part number.

The sizing logic is different from top lighting. You are not trying to fill a horizontal plane; you are trying to put a useful PPFD on vertical flower sites along a row. Row length, pot spacing, aisle width and the height of the lowest productive branch all matter. The under-canopy lighting guide covers the research and the ROI arithmetic, and the under-canopy product range lists the variants and their coverage.

Golden 1300W: Where the Extra 300 Watts Go

A 1000W fixture is a sensible default, and it is not the right answer for every 4×6 bed. Once a room is CO₂-enriched, running a high-DLI flower cycle and already at the top of its HVAC capacity, the next step is not a second 1000W fixture. It is a fixture with more photon headroom over the same footprint, run at part load for most of the cycle.

That is the case the Golden 1300W is built for. It uses six wide bars and 3,984 top-bin Samsung LEDs to produce 3,900 to 4,550 µmol/s at 3.0 to 3.5 µmol/J, over a 4×6 ft footprint. At full output that is roughly 1,750 to 2,040 µmol/m²/s before losses, which is above what most rooms should run at the canopy. The point of the extra 300W is not to run it at 100 percent. It is to run it at 70 to 85 percent, where the diodes and driver are comfortable, the heat load is lower than a maxed-out smaller fixture, and the room still has headroom for the last two weeks of flower or a CO₂ push.

Two details in that table deserve a sentence each. The three-channel option is the difference between a spectrum you choose once and a spectrum you schedule: UV and IR on separate channels can be run during the hours the crop benefits and switched off when they do not. The per-batch integrating-sphere report matters because the efficacy number on a spec sheet is a design target, while the report is a measurement of the fixture that ships to you. Both are worth asking for before a purchase order, along with the PPFD map at the mounting height you intend to use.

If the room is a 4×4 bed rather than a 4×6, the same platform is available in a smaller build, and the 4×6 and 1000W to 1400W page lists the configurations and the US and Canada stock position. If the room needs a top light and lower-canopy light in one order, the Grow Light Set pairs them. The right next step is not a fixture selection from a table. It is sending the room dimensions, the ceiling height, the current fixture and the PPFD readings you have, and getting a fixture map back with the quotation.

What to Check Before You Wire It In

A spec sheet is a negotiation document, not a certificate. Six numbers decide whether a 1000W full spectrum fixture will do what the page implies, and each one has a question that exposes the difference between a measured value and a marketing value.

PPF at the fixture, not the diode. Ask for the PPF of the assembled fixture at its rated drive current, in µmol/s. A diode-level number is not a fixture number, and the gap between them is where most inflated claims live.

Efficacy at the wall, not the board. Divide PPF by the system wattage including driver losses. If the result is above about 3.5 µmol/J for a white-plus-red fixture, ask for the test report and the conditions under which it was measured.

Footprint at a stated PPFD. A coverage claim without a PPFD value is not a coverage claim. Ask for the average PPFD and the uniformity at the mounting height you will use, ideally as a nine-point map.

Dimming range and protocol. Confirm that the driver dims smoothly to the level you need for vegetative and propagation stages, and that the controller protocol matches the rest of the room. A fixture that only dims to 40 percent is a flowering fixture.

Certification scope. ETL and DLC listings are configuration-specific. Confirm the listing covers the voltage, driver and channel configuration on your order, and check the DLC tier if a rebate depends on it.

Service and spares. Ask for the driver and bar part numbers, the warranty term by model, and the lead time for a replacement bar. A fixture is a five-year asset, and the spare-parts list is part of the specification.

None of those questions requires a lighting engineer. They require the supplier to put a number next to a claim, and a supplier who cannot is telling you something useful before the order rather than after it.

FAQ

These are the questions that come up most often when a grower is comparing a 1000W full spectrum LED against an HPS replacement or a smaller LED. The answers assume a commercial indoor room and a legal cultivation context.
